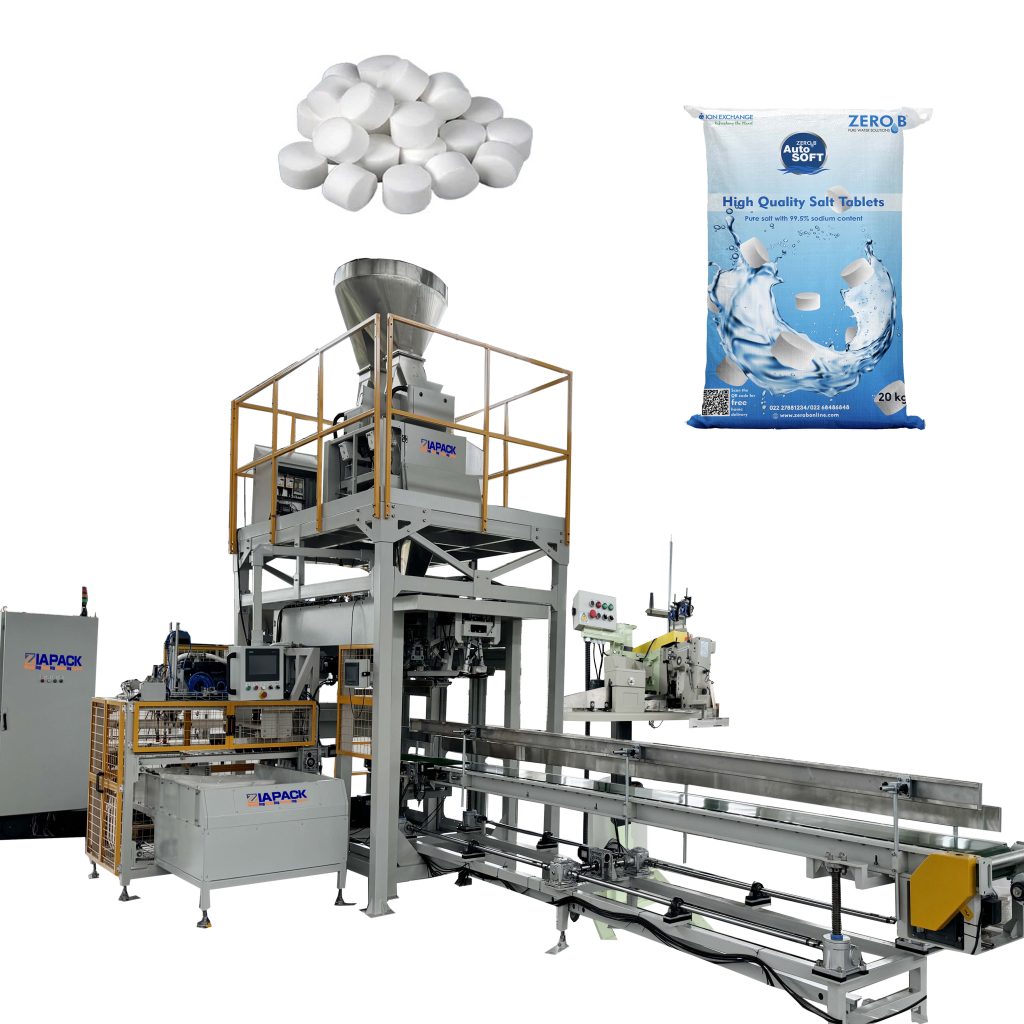

স্বয়ংক্রিয় ২৫ কেজি লবণ ট্যাবলেট খোলা মুখের ব্যাগ ওয়েইগিং ফিলিং ব্যাগিং মেশিন

1,Introduction :

This line is special design for automatic feeding the bulk salt tablets bagging in to 25kg PE bag and PP woven bag then sealing the bag .According the client requirement we also need offer the automatic weight check and palletizing .The seller completed the design, manufacturing and supply of the production line in strict accordance with the technical requirements and combined with its own packaging line design experience in the sugar industry.

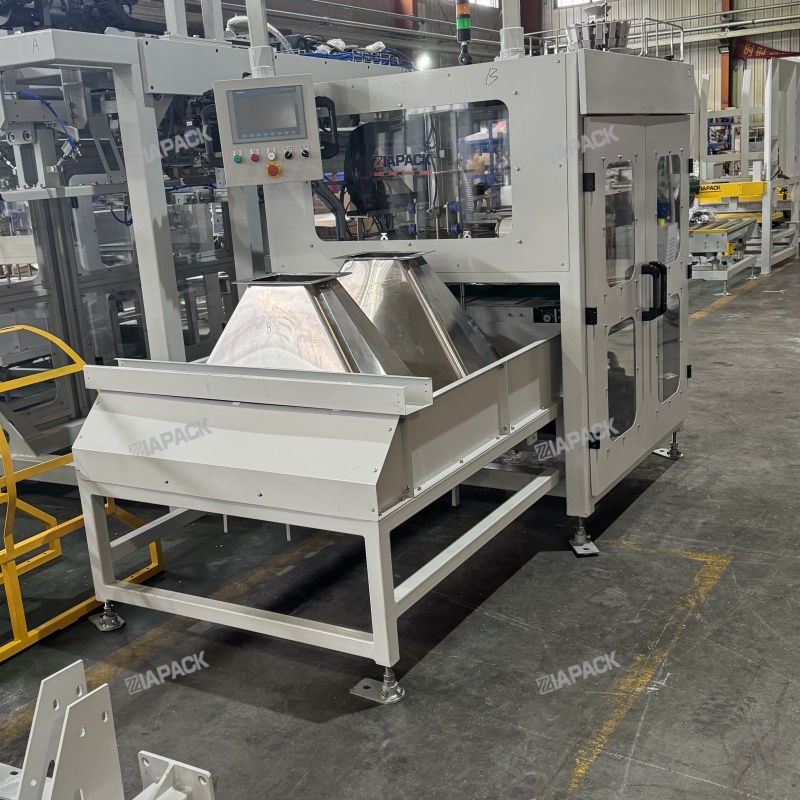

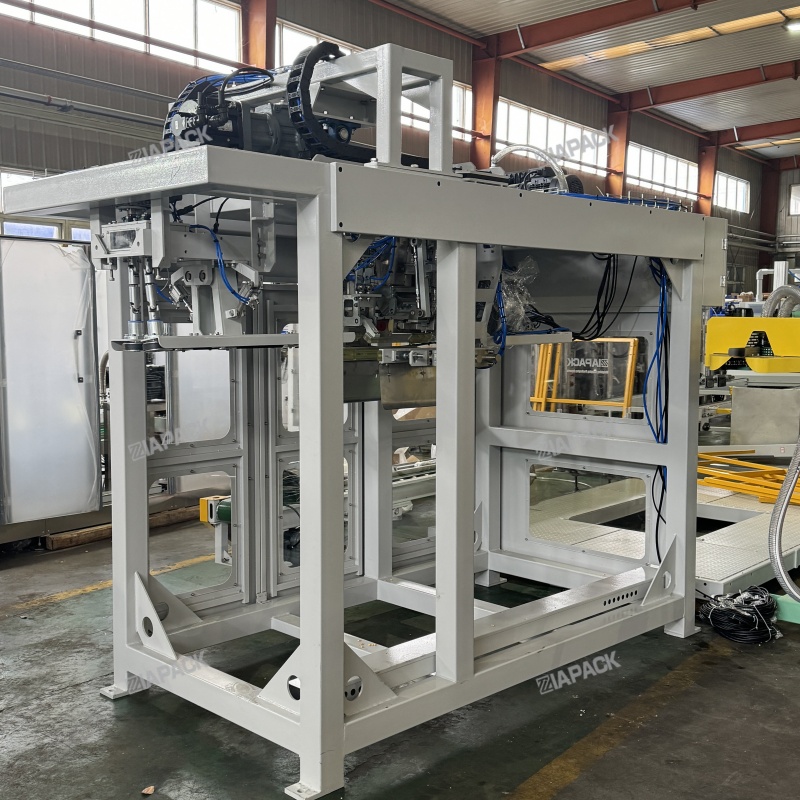

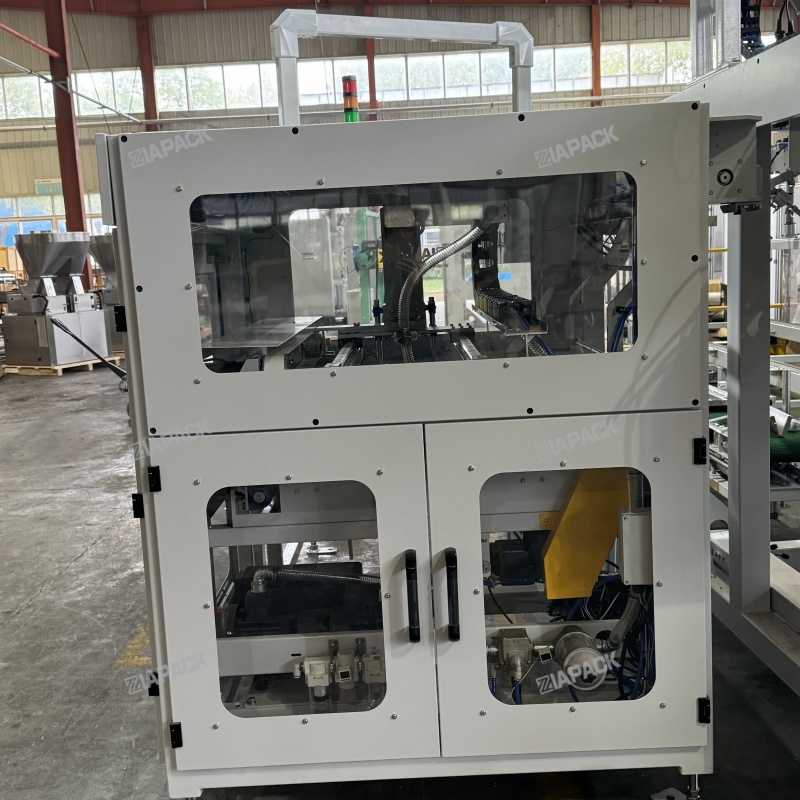

This unit consists of a bag storage bin, bag taking and sorting device, bag loading robot, bag clamping and unloading device, bag pushing device, bag mouth guide device, vacuum system and control system.

বৈশিষ্ট্য

1).Wide adaptability to packaging bags. The packaging machine adopts the bag picking method, that is, the bag is taken from the bag preparation warehouse, the bag is centered and positioned, the bag is sent forward, the bag mouth is positioned, the bag is pre-opened, the bag loading manipulator inserts the knife into the bag mouth to open the bag mouth, and then Bag up.

2). The bag loading manipulator arm is driven by a servo motor. Compared with the pneumatic manipulators of most other manufacturers, it has the advantages of fast speed, smooth bag loading, no impact, and long service life.

3). The bag clamping and unloading device is equipped with two proximity switches at the bag clamping opening, which are used to detect whether the packaging bag opening is completely clamped and whether the bag opening is fully opened. This ensures that the packaging machine does not misjudge and does not spill materials on the ground, which improves the use efficiency of the packaging machine and the on-site operating environment.

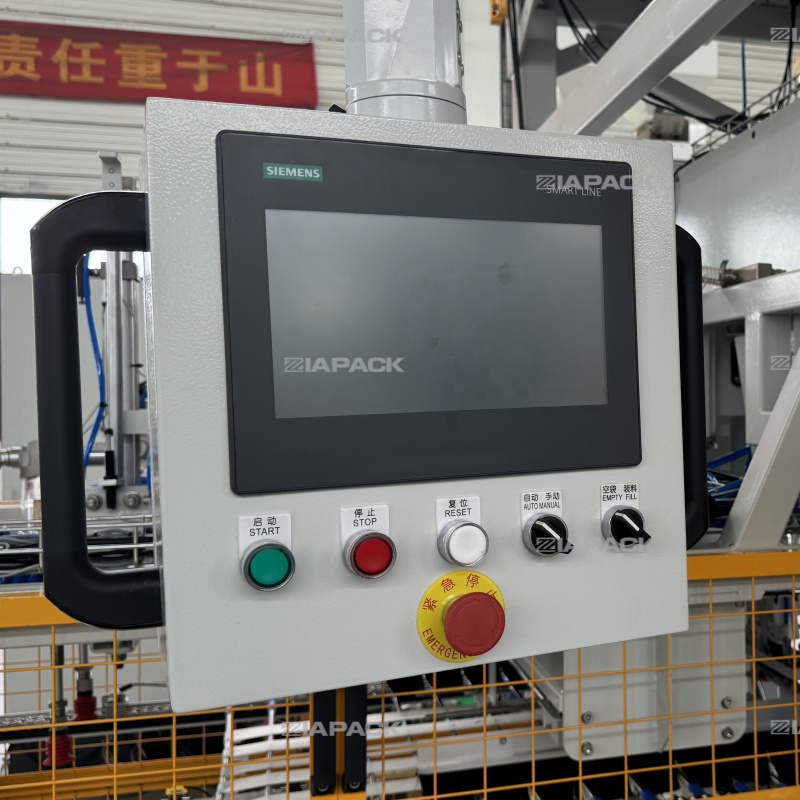

4). The parameter setting of the packaging machine is completed on the touch screen. The human-machine friendly touch screen operation interface can comprehensively monitor the operating status of the entire machine. Automatic fault display and processing method prompts allow maintenance personnel to deal with the fault in the shortest time.

5) Pneumatic components such as solenoid valves and precision products such as touch screens and weighing instruments are all sealed and installed without exposure. They are suitable for use in dusty environments, which ensures that the equipment has a long life.

6) All control components and executive components of the packaging machine are produced by famous domestic and foreign companies, ensuring long-term, stable and reliable operation of the equipment.

7) It has a fault self-diagnosis function and an audible and visual alarm system to promptly alert any problems that arise.

8) The simple and convenient operating platform makes it easy for operators to operate and monitor the machine.

প্রযুক্তিগত পরামিতি:

Packaging capacity 600bags/h

Control method Programmable controller (PLC)

Material: 304 stainless steel for material contact surface, 304 stainless steel for frame protection, etc.

Weighing sensor maximum setting valve :30kg

Air consumption ~ 600NL/min

Power supply AC 380V 50Hz ~ 15kw

Supply list of main components of equipment
