ডাবল ভ্যাকুয়াম চেম্বার কফি ব্যাগ তৈরির ফিলিং প্যাকেজিং মেশিন

ভূমিকা:

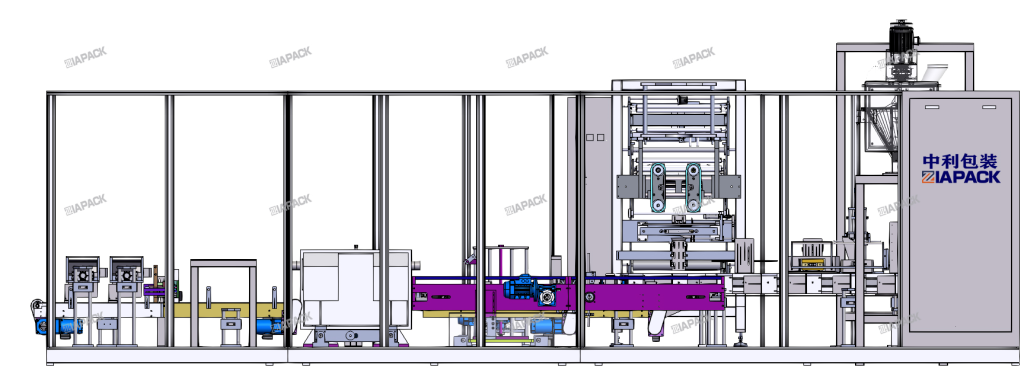

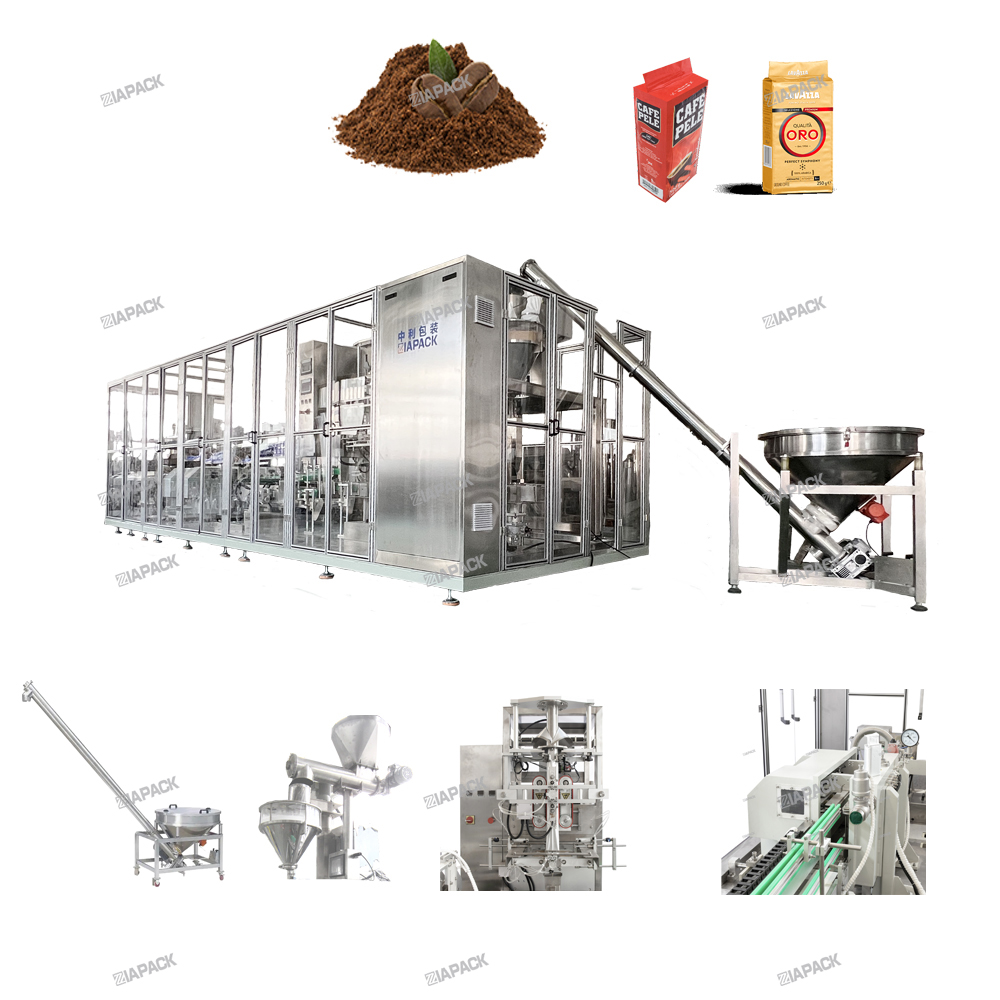

This machine including one set ZL420 vertical bag making packing and sealing machine .one set ZLA2000 Auger measuring machine ,One set ZL100V2 double vacuum chamber packing machine ,and one set output conveyor .The machine have the function of bag forming ,product filling ,bag cleaning and vacuuming .Can choose thermal transfer coding machine which are more popular for make date coding on Coffee brick vacuum bag .This machine are widely use for packing food pharmacy chemical and other product in powder or small granule. Like coffee powder ,yeast powder wheat flour and so on .The whole machine adopting inside pumping to vacuum product .The vacuum degree is very high and packing speed is very high can be reach 8bag/min .The finished product is very nice and have a long shelf life.

প্রযুক্তিগত পরামিতি :

মডেল: ZL100V2 (ডাবল ভ্যাকুয়াম চেম্বার)

Packing speed :200-250gram   20-25bag/min

Machine dimension:6800*2300*4080mm

Power :25kw

Air supply :8Bar 0.8m3/min (Suggest client use air storage tank with volume is 1.5cbm)

Bag dimension : Width 80mm Depth 44mm Height from 150 mm
